Product Details
- Size: 200m³
- Place of Origin: Jinan,Shandong,China
- Brand Name: MHM
- Model Number: JM39
- Weight: 500000.000 kg
Unit | JM39-1250 | ||
Nominal pressure | KN | 12500 | |
Nominal working stroke | mm | 13 | |
Slide stroke | mm | 800 | |
Number of slide stroke | c.p.m | succession:12-20 once:9 | |
Max shut height | mm | 1200 | |
Shut height adjustment | mm | 400 | |
Micro-inching stroke adjustment | c.p.m | 3-6 | |
Effective bolster size(FB×LR) | mm | 2200×5200 | |
Slide bottom effctive size(FB×LR) | mm | 2200×5200 | |
Air cushion | Air cushion pressure | KN | 800 |
Number of cylinders | Pieces | ||
Stroke | mm | 0-200 | |
Air pressure | MPa | ≥0.55 | |
Main motor power | Kw | 200 | |
Electrical control form | PLC | ||
Height above floor | mm | <11000 | |
Total weight | Kg | 500000 |

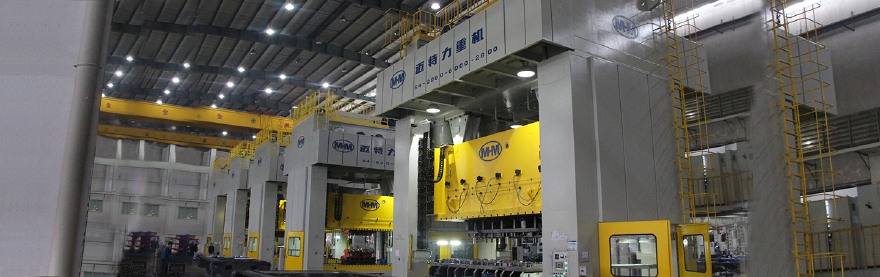

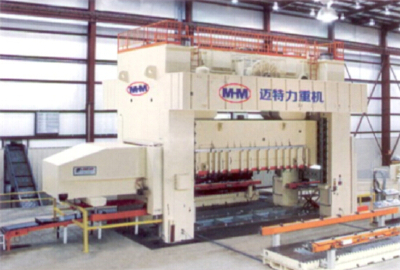

Transfer mechanical press is an advanced equipment for high-efficiency,large-scale stamping production.It combines mechanical, electronic, control and detection technology to make sure High speed, high precision and automation of stamping production.And represents high-end technology level of internationally pressing forming at present.This press can fulfill kinds of processes on a single stroke of the press,such as blanking punchwork pulling bending cutting correction ,with high productivity.Comparing with ordinary press,it has many advantages for volume-produce such as automatic up-down material, high material utilization and low energy consumption, high production efficiency, cover an area of an area small, low production cost and etc.
