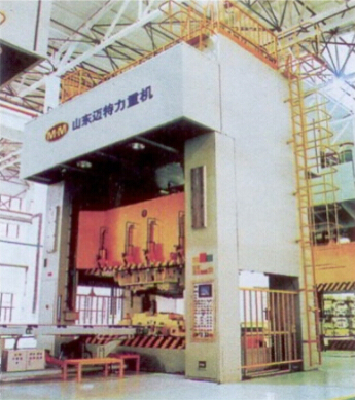

Straight-sided four-point action mechanical press

Straight-sided four-point action mechanical press

  • Min.Order Quantity: 1 Set
  • Supply Ability: 5 Sets per Year
  • Port: China port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
Verified Supplier JINAN METALIST TECH GROUP CO.LTD
| Factory
Experience:2007-09-07
Visit Factory
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  60m³
  • Place of Origin:  Jinan,Shandong,China
  • Brand Name:  MHM
  • Model Number:  JM39-1600
  • Weight: 570000.000 kg


Unit JM39-1600
Nominal pressure KN 16000
Nominal working stroke mm 13
Slide stroke mm 800
Number of slide stroke c.p.m succession:10-18 once：10
Max shut height mm 1500
Shut height adjustment mm 600
Micro-inching stroke adjustment c.p.m 3-6
Effective bolster size(FB×LR) mm 2500×6000
Slide bottom effctive size(FB×LR) mm 2500×6000
Type pf moving bolster antedisplacement
Air cushion Air cushion pressure KN 3000
Number of cylinders Pieces 2/1
Stroke mm 0-300
Air pressure MPa 0.55
Form rigidity
Main motor power Kw 280
Electrical control form PLC
Height above floor mm 10800
Total weight Kg 570000

  • Size:  60m³
  • Place of Origin:  Jinan,Shandong,China
  • Brand Name:  MHM
  • Model Number:  JM39-1600
  • Weight: 570000.000 kg
