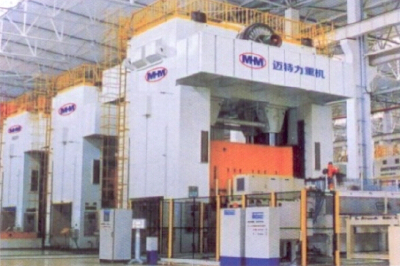

Straight-sided four-point action(link-drive) mechanical press

Straight-sided four-point action(link-drive) mechanical press

  • Min.Order Quantity: 1 Set
  • Supply Ability: 5 Sets per Year
  • Port: China port
  • Payment Terms: L/C,T/T
Get Latest Price:
  • *Quantity: Set/Sets
| Factory
Experience:2007-09-07
Buyer Protection

- Guaranteed Secure Payments on Every Order

- Refund if your item is not delivered or as described

- Buyer Protection after order confirmation

Latest Browsing
Product Details
  • Size:  60m³
  • Place of Origin:  Jinan,Shandong,China
  • Brand Name:  MHM
  • Model Number:  LS4-2000
  • Weight: 400000.000 kg


Unit LS4-2000
Nominal pressure KN 20000
Nominal working stroke mm 13
Slide stroke mm 750
Number of slide stroke c.p.m succession:10-20 once:9
Max shut height mm 1400
Shut height adjustment mm 600
Micro-inching stroke adjustment c.p.m 3-6
Effective bolster size(FB×LR) mm 2200×4000
Slide bottom effctive size(FB×LR) mm 2200×4000
Air cushion Air cushion pressure KN 2000
Number of cylinders Pieces 2/1
Stroke mm 0-250
Air pressure MPa ≥0.55
Main motor power Kw -
Electrical control form PLC
Height above floor mm <12000
Total weight Kg -


  • Size:  60m³
  • Place of Origin:  Jinan,Shandong,China
  • Brand Name:  MHM
  • Model Number:  LS4-2000
  • Weight: 400000.000 kg
