- Size: 12m³
- Place of Origin: Jinan,Shandong,China
- Brand Name: MHM

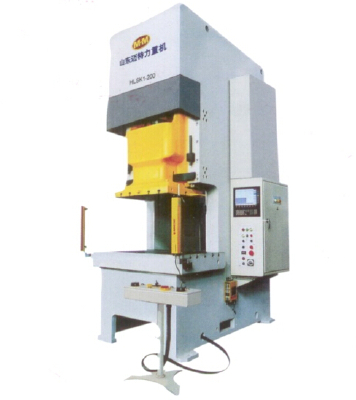

- Model Number: HLSK1-200
- Weight: 18000.000 kg
Unit | HLSK1-200 | ||
Nominal pressure | KN | 2000 | |
Nominal working stroke | mm | 6 | |
Slide stroke | mm | 200 | |
Number of slide stroke | c.p.m | 30-50 | |
Micro-inching stroke adjustment | c.p.m | 1-3 | |
Max. die set height | mm | 450 | |
Shut height adjustment | mm | 110 | |
Slide bottom effctive size(FB×LR) | mm | 850×650 | |
Additional plate thickness of slide | mm | 140 | |
Effective bolster size(FB×LR) | mm | 1400×820 | |
Thickness of bolster | mm | 160 | |
Throat size | mm | 425 | |
Slider | Modality | rigidity | |
Distance of run | mm | 50 | |
Quantity | Pieces | 1 | |
Balancing pressure of balancing unit | KN | 4 | |
Air pressure | MPa | 0.55 | |
Main drive motor power | Kw | 90 | |
Shut height adjustment motor | Power | Kw | 0.75 |
Speed | rpm | 1380 | |
Constant stroke power of slide | Kj | 12 | |
Height above ground | mm | 1000 | |
Height above floor | mm | 4000 | |
Dimensions | mm | 1200×2400 | |
Total weight | Kg | 18000 |
High versatility,flexibility and intelligence
High operating accuracy of die block
High production efficiency
Energy saving
Low noise.less vibration,long service life of die
Low cost for maintenance
The main features of the servo drive: The motor transmits the motion to the eccentric shaft through a belt;the motion speed and position of die block can be precisely controlled arbitrarily.By changing the motor speed,the die block can achieve acceleration or deceleration according to the demand.The change for motor speed is optional.If not used,the machine tool will work with constant performance and stroke speed,just like the conventional press.But unlike conventional eccentric mechanical presses,it doesn’t use clutch,brake and flywheel.
